Comes with 1- green Dual USB, 1 - green back lit 12v outlet, 1 green volt meter and 1- green rocker switch installed and wired together. The positive and negative wires will need to be wired into power during install but everything on the panel is wired up.
To install remove the factory panel by pulling out the dash piece / trim to access the rear and push the clips in. Factory panel will pop out. Then slide the replacement panel in at an angle engaging the top clips first. Now continue pushing the panel UP while pushing IN on the bottom until the panel snaps into place. Panel will only fit in 1 orientation, look for the large post on the panel and matching cutout in the dash. This panel does not have flexible clips like the OEM panel however following the instructions you should not have an issue.
Please note these WILL NOT FIT older style Fords as the dash section is not removable. This includes all EXCURSION years as they have the older style dash in them.
Customer Reviews
Customer Reviews
Shipping was fast and I received my panel in just a few days. When I had a question regarding the power panel, customer service replied during a weekend and offered a refund if I was dissatisfied. Great customer service.
The product itself. It comes with a build in 10 amp fuse, the factory power port fuse in the truck is 20 amp. I was told this was due to wire and connector size. I pulled all the 16 awg wire out and completely rewired it with 14awg (stock truck wire size).
The 3D printed panel fit awesome in the trucks dash. No movement and no rattling driving down the road. The power port socket is a little big. All my phone chargers are super loose in it and on occasion lose connection. They all require a couple wraps of electric tape to achieve a snug fit. None of the covers I find will stay in the socket due to the large size.
With the added voltage display and LEDs you need to manually turn off the panel to prevent power drain if the truck will be setting for an extended period of time. I will probably be adding a timer or a relay for Key on operation.

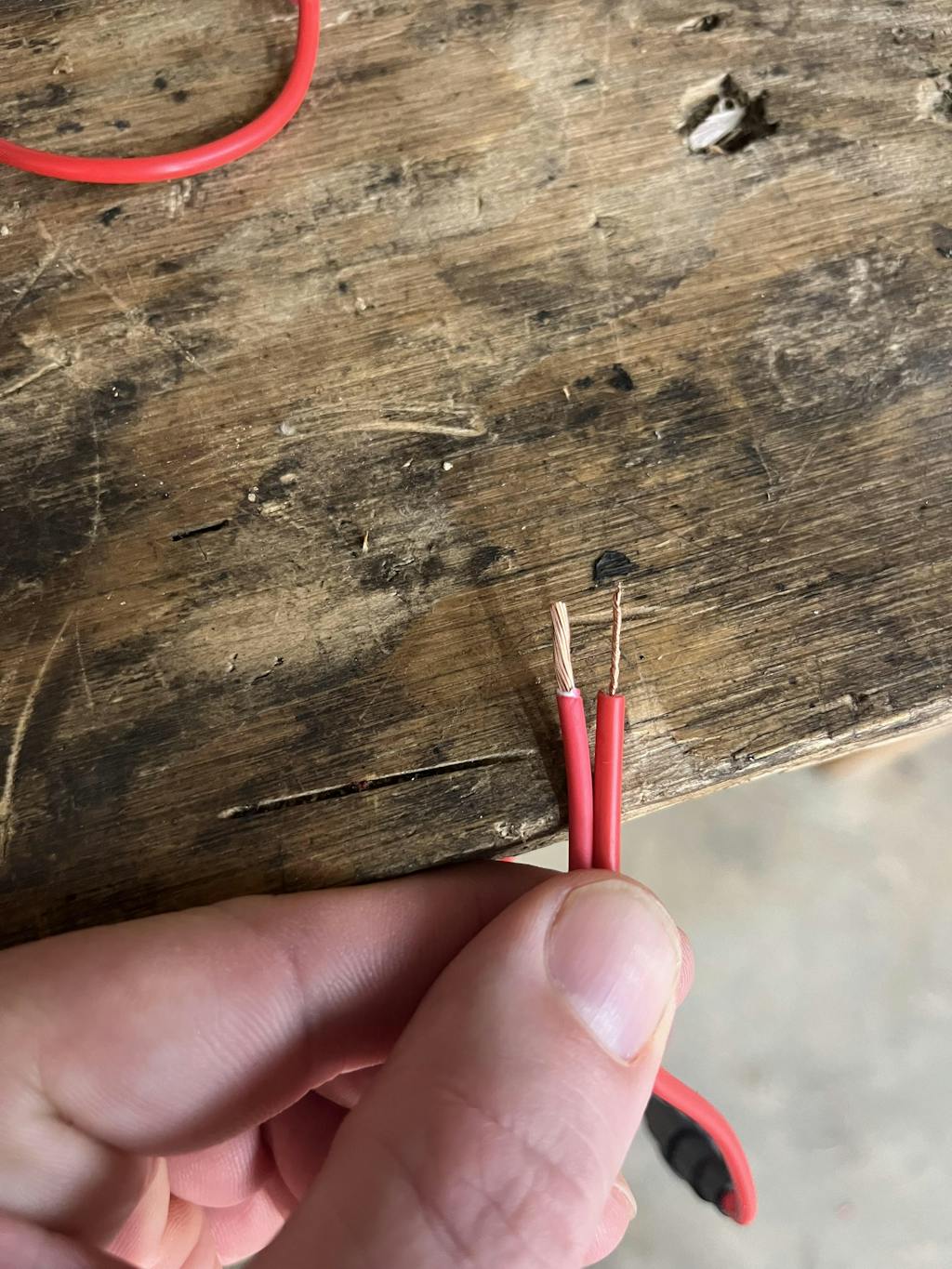

The uploaded pictures shows the 14awg I used on the left and the wire they used in the right.

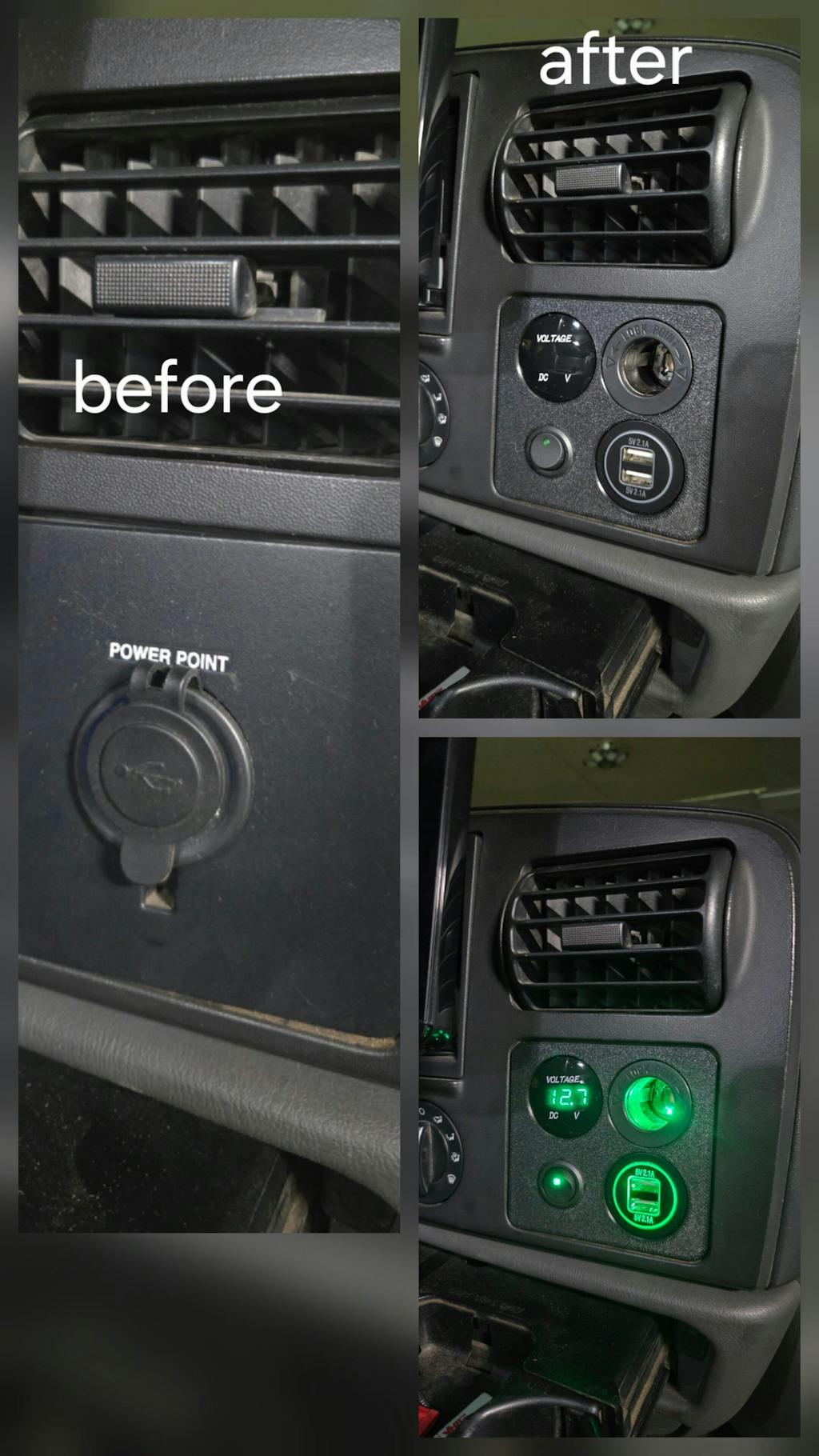

Fits perfectly very nice more modern update
Fit absolutely mint no wiggle play, love the green how it matches the dash, and for everyone looking for a install video there isn’t one just use the positive (black and pink) wire and negative (all black) wire from the original power point not the airbag sensor
